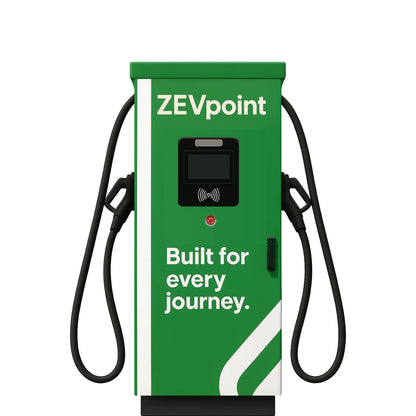

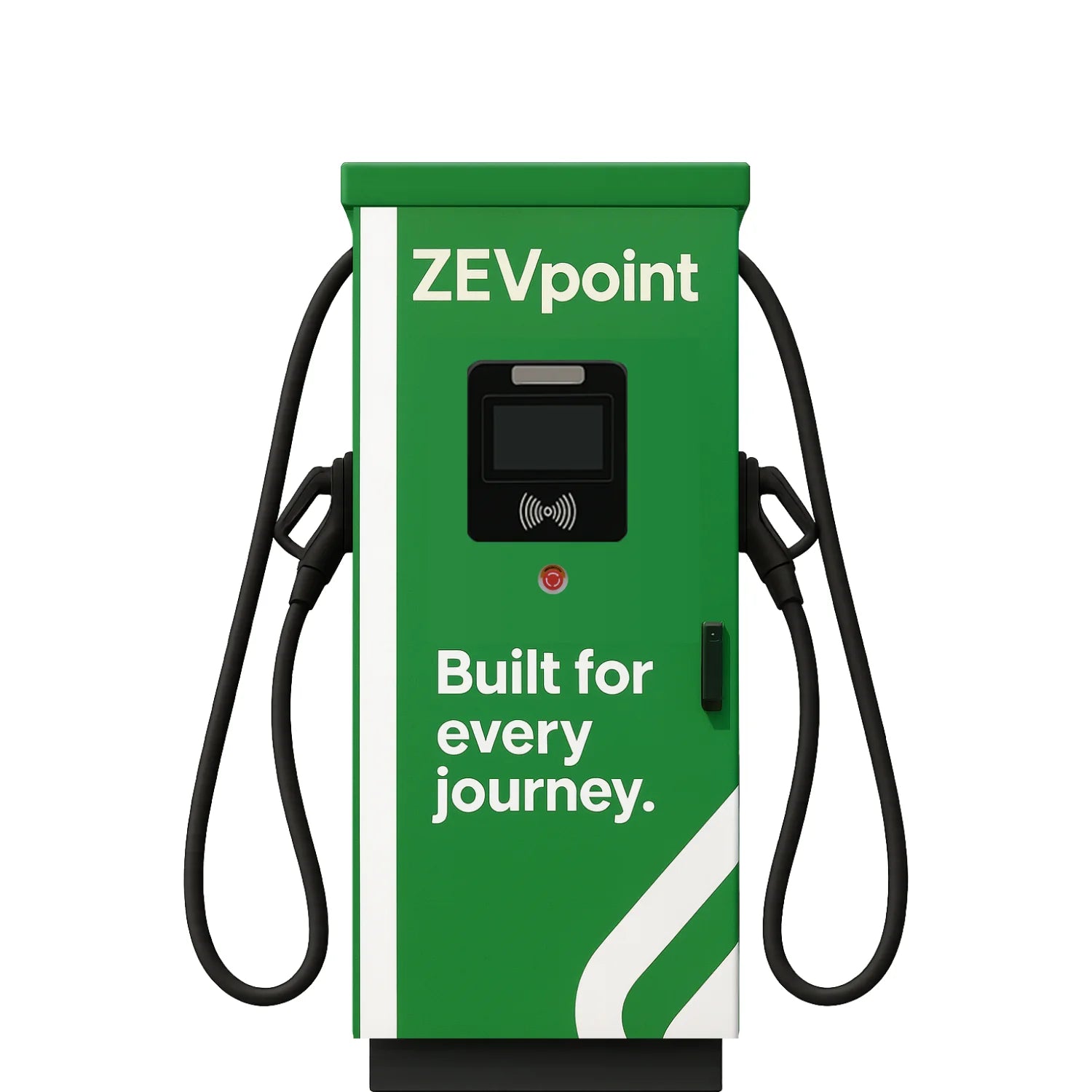

Nova 240kW DC Charger | Dual Gun Ultra-Fast EV Charging Solution for Highways & Commercial Use
Nova 240kW DC Charger | Dual Gun Ultra-Fast EV Charging Solution for Highways & Commercial Use
Couldn't load pickup availability

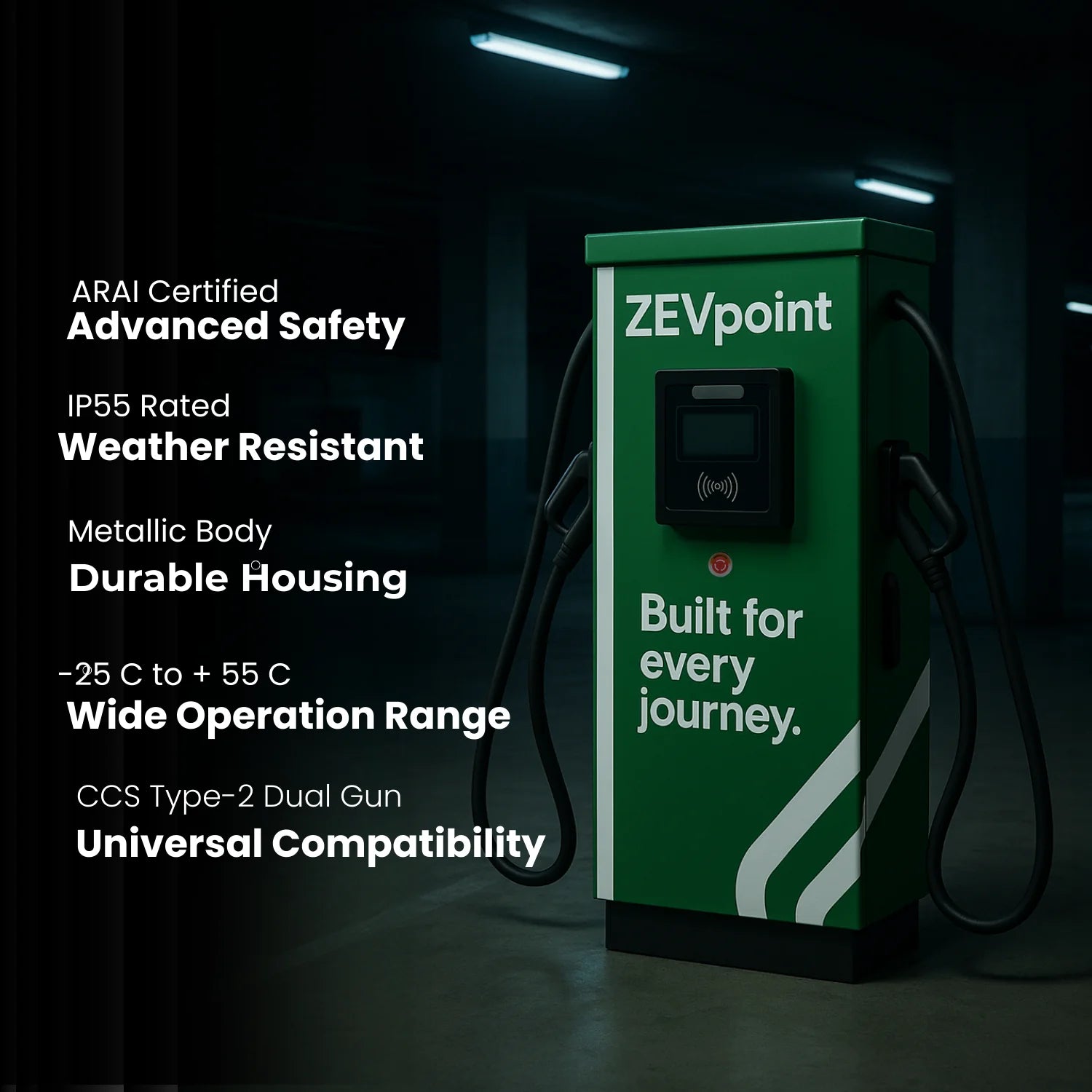

Mega Power, Zero Compromise : When speed and scale matter most, the ARAI-certified 240kW DC ultra-fast charger sets a new standard for commercial EV charging. With dual-gun dynamic load sharing and the ability to charge buses, trucks, and heavy EVs, it’s engineered for highway corridors, logistics hubs, fleet depots, and large-scale public charging stations.

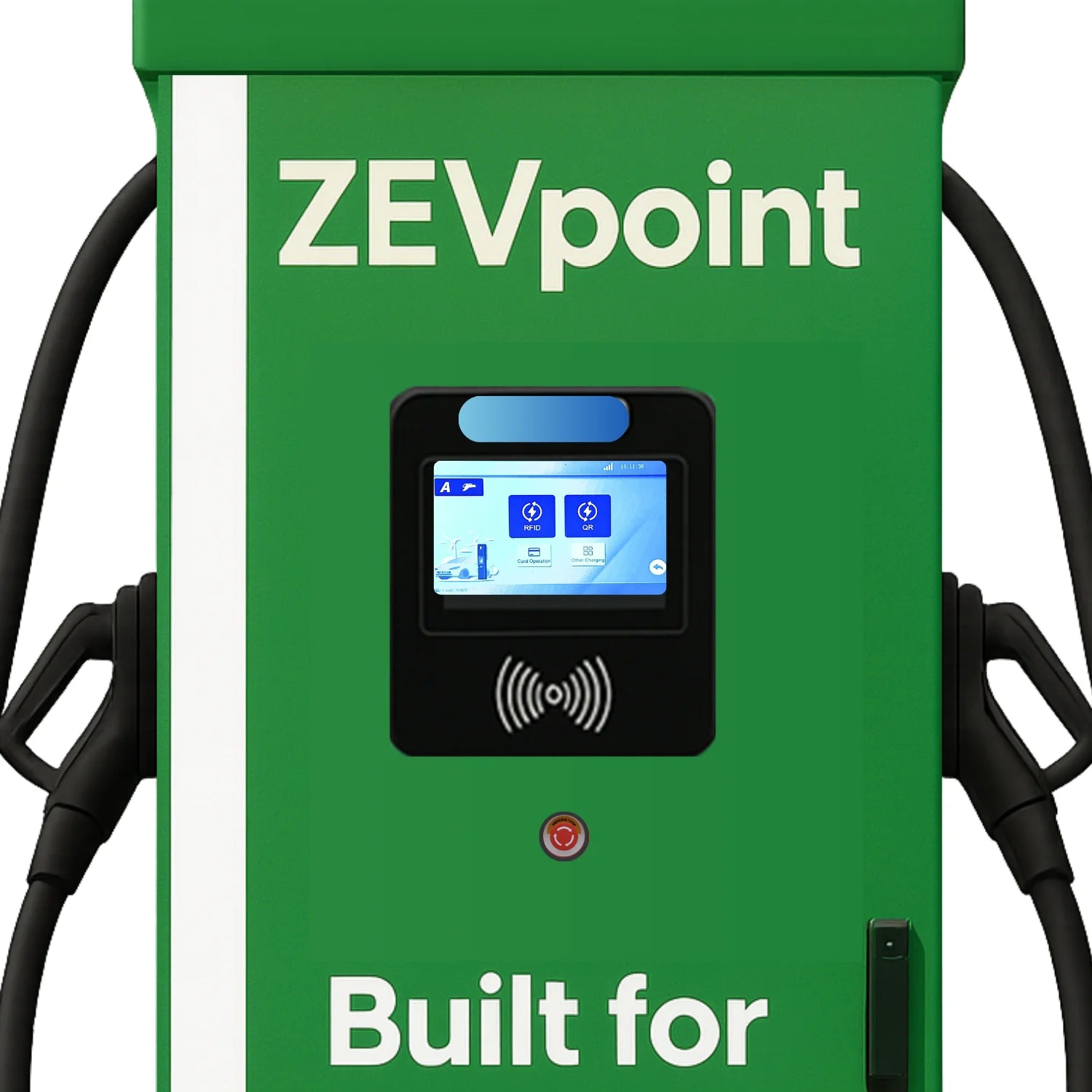

Seamlessly integrated with OCPP 1.6, RFID access, and UPI/card payments via the ZEVpoint app, this charger ensures smooth operations for both operators and users. Designed with a rugged stainless steel body, intelligent cooling, and a large 15" LCD display with LED indicators, it delivers industrial strength, user-friendly control, and round-the-clock reliability.
Backed by a 2-year on-site warranty and 48-hour priority service, it’s the ultimate fast-charging solution for high-demand commercial environments.
Technical Specifications
-
Input Voltage: 380–465V AC, 3-phase, 50Hz
-
Input Current: 400A
-
Max Output Power: 240kW
-
Output Voltage: 250–1000V DC
-
Efficiency: >98.5%
-
Operating Temperature: –25°C to +70°C
-

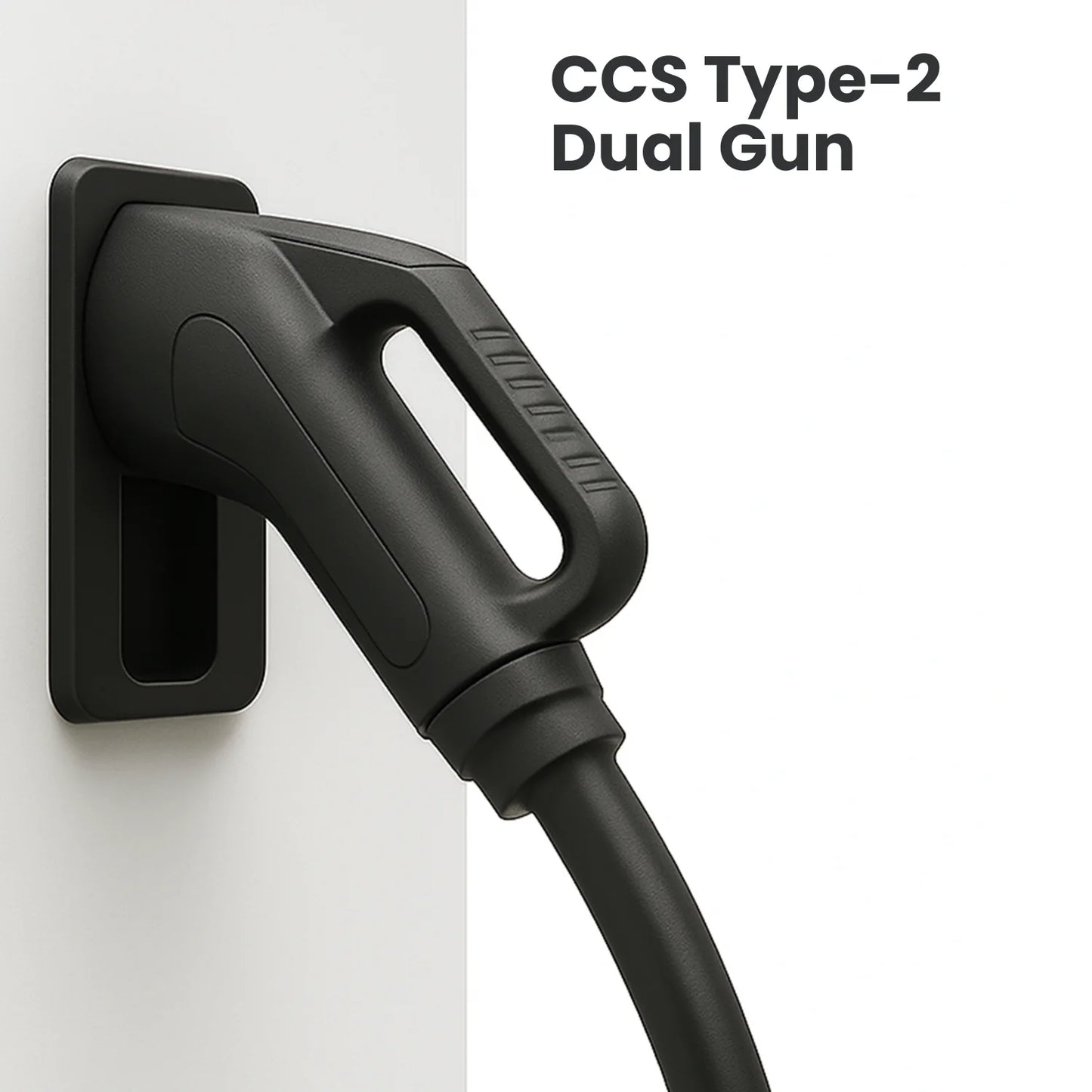

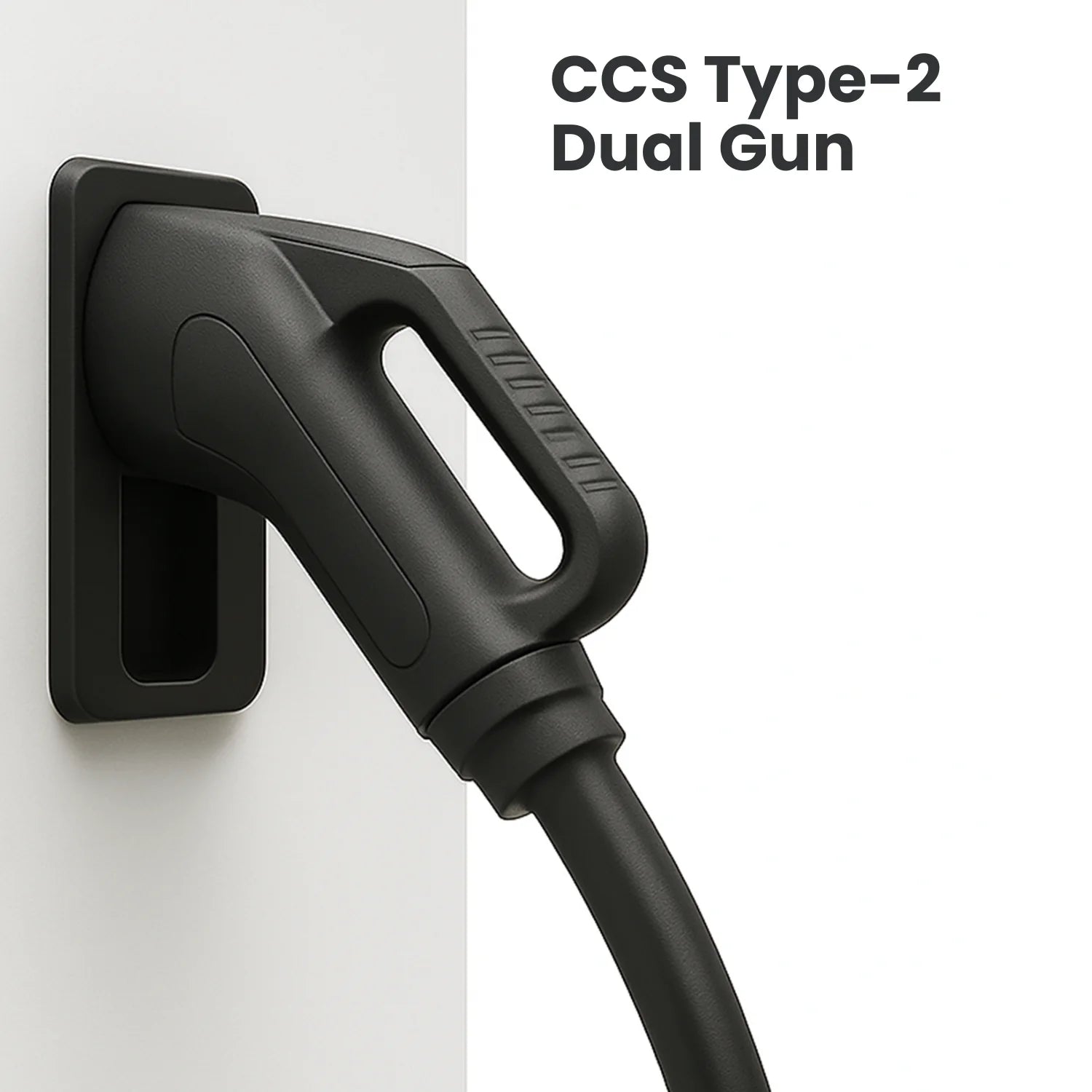

Charging Interface: 2 × CCS Type-2 (Dual Guns, 5m cables)
-
Control & Authentication: RFID / OCPP 1.6 / Password / QR Code
-
Payments: UPI & Card via ZEVpoint app

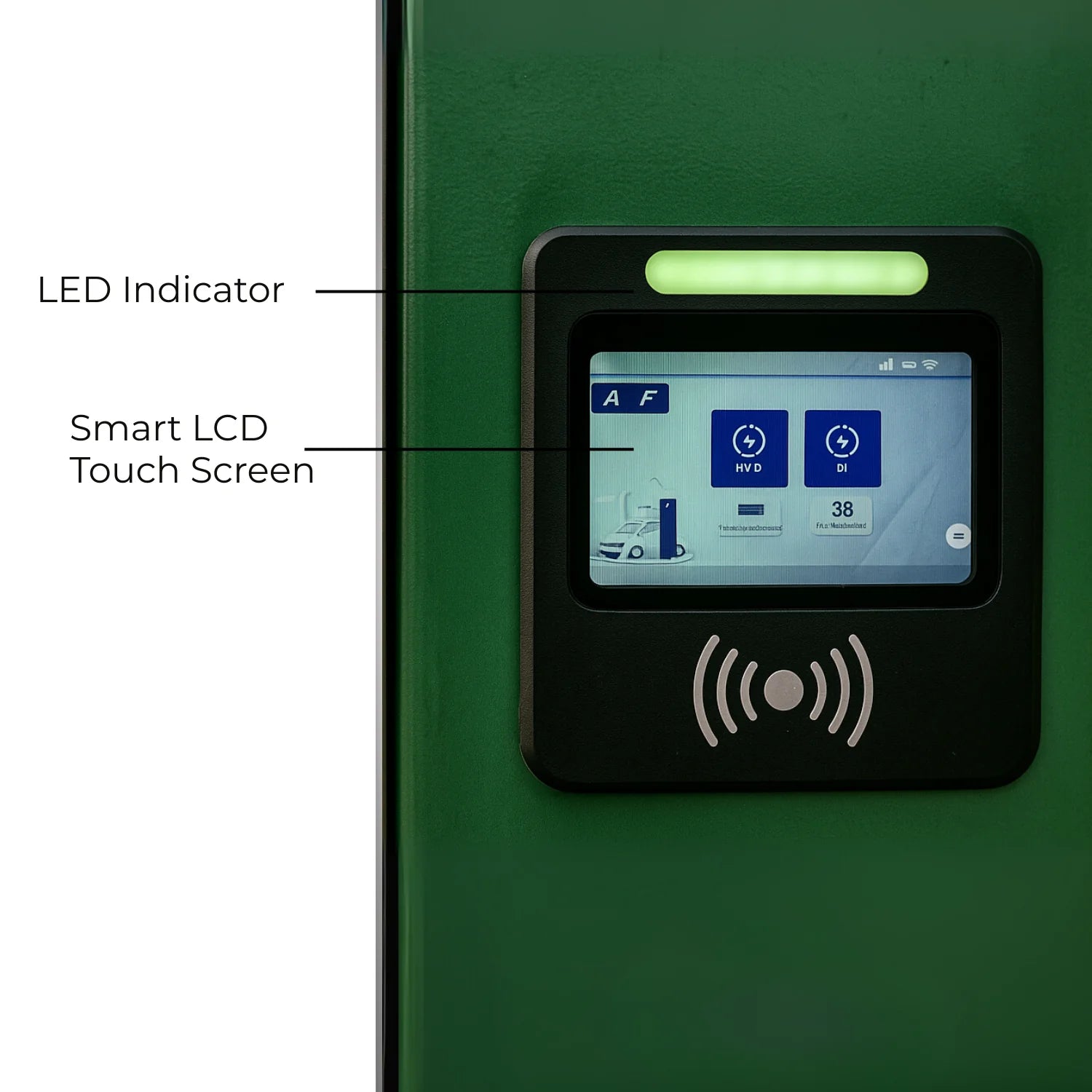

- Display: 7"/10" LFT Touch Screen
-
Protection Rating: IP54 (dust/splash resistant), IK10 impact rating
-
Cooling: Air Cooling

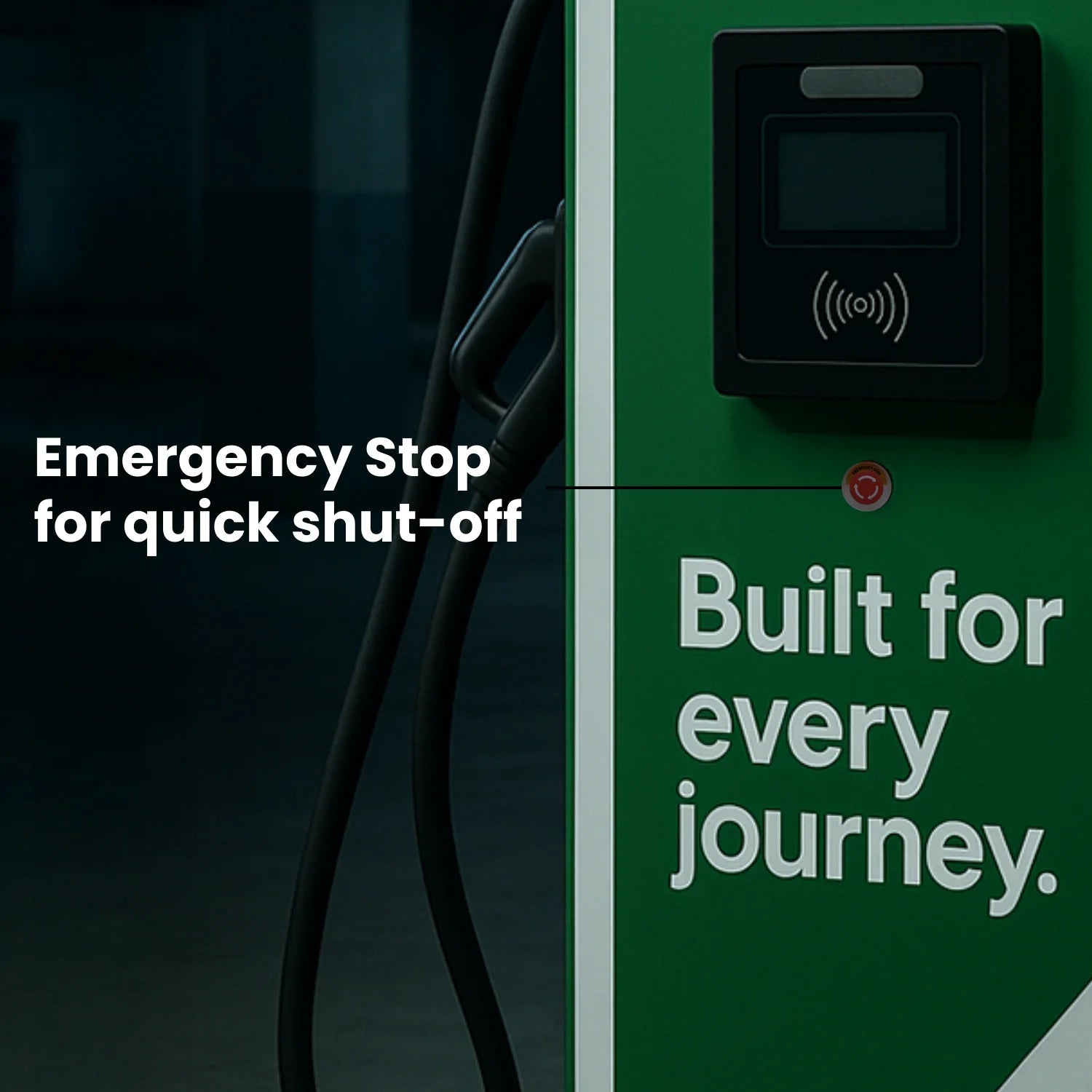

- Safety Features: Emergency Stop, Over-current, Short Circuit, Over Temp, Leakage, Surge Protection, Under Voltage, Over Voltage, Ground Fault, Polarity Reverse Protection, Insulation Monitoring, Charge Cable Temperature Detection
